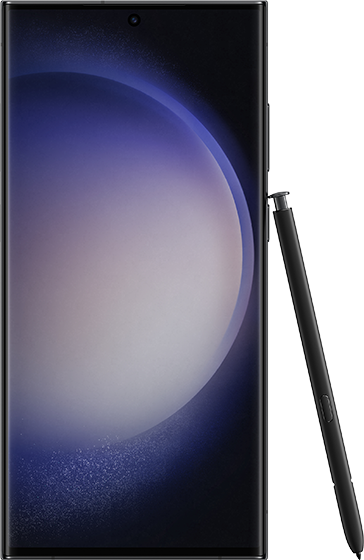

Samsung Galaxy S23 Ultra User Guide
What do the different indicator icons mean on your Galaxy phoneLooking for a new phone?
Discover our wide selection of recent phones from the top brands.
Technical Specifications
Processor
| Processor | Octa-core Qualcomm SM8550 Snapdragon 8 Gen 2 |
| Graphics | Adreno 740 |
Memory
| Internal memory | 512 GB |
| RAM | 12 GB |
| External memory | No |
Others
| NFC (Near Field Communication) | Yes |
| Compass | Yes |
| FM Stereo Radio | No |
| Bluetooth | 5.3, A2DP, LE |
| SIM Card Format | Nano SIM and eSIM |
| aGPS geo-location | Yes |
| Accelerometer | Yes |
Connectivity
| Wi-Fi Calling certified | Yes |
| LTE Bands | 2, 4, 5, 7, 12, 13, 25, 29, 30, 38, 41, 46, 66, 71 |
| Wi-Fi | 802.11 a/b/g/n/ac/ax (Wi-Fi 6e) |
| 3G Frequencies | 850, 900, 1700, 1900 and 2100 MHz |
| Compatible LTE 700 MHz | Yes |
| VoLTE certified | Yes |
| Wi-Fi Bands | 2.4, 5 and 6 GHz |
| 2G Frequencies | 850, 900, 1800 and 1900 MHz |
| 5G certified | Yes |
| 5G+ certified | Yes |
| Maximum Wi-Fi speed | ~ 800 Mbps |
| 5G Bands | N66, N71, N78 |
Physical
| 3.5mm audio jack | No |
| Dimensions | 163.4 x 78.1 x 8.9 mm |
| USB | USB-C |
| Weight | 234 g |
| Ingress Protection rating | IP68 (1.5m for 30 minutes) |
In the box
| USB cable | Yes |
| Instructions | Yes, Quick Start Guide |
| Earphones | No |
| Charger | No |
Camera
| Video recording | 8K@30fps, 4K@60fps, 1080p@240fps, 720p@960fps |
| Front camera | 12 MP |
| Camera/video | 200MP + 10MP optical zoom 3x + 10MP periscope zoom 10x + 12MP wide angle |
Screen
| Resolution | 1440 x 3088 pixels (~501 dpi) |
| Size (inches diagonal) | 6.8-inch Dynamic AMOLED 2X display at 120 Hz |
Software
| Operating system | Android |
| Helix TV app compatible | Yes |
| Unlocked device | Yes |
| Gmail |
Battery
| Removable | No |
| Battery | 5000 mAh |
| Fast charging | Yes |
| Wireless charging | Yes |
| Reverse Wireless charging | Yes |
